HD 7''TFT wired doorbell Color Video door phone Intercom Doorbell System Kit IR Camera Doorphone Monitor Intercom Free shipping

HD 7''TFT wired doorbell Color Video door phone Intercom Doorbell System Kit IR Camera Doorphone Monitor Intercom Free shipping
  • Продавецthestraightway.info
  • Список ценUS $60.31piece
  • Продажная ценаUS $60.31piece
  • ДоставкаБесплатная доставка
  • Рейтинги3,9 (787)

Oписание продукта

JERUAN Home safety 9`` LCD Color  Screen video door phone Unlock intercom system RFID Camera FREE SHIPPING
700 TVL HD Camera, Clearer Video!
9 Inch Color Screen!



The item you are watching is our new arrival video door phone system with recording function, it will record video automatically when someone press ring the bell. This allows you can see who visited your house when you are not at home or when you missed the call, if the visitors leave a message via the outdoor unit, you can also get more information via the video when you come back.
The monitor is equipped with 9" high resolution color and the camera is 700TVL, which will enable you to see clearly who is at the door. The camera mounted at the outside of the door allows you to talk outside and the people at outside can also talk to you. This 2-way communication is an inexpensive and effective way to talk with the stranger at the door without actually opening the door. You will experience great benefit from this video door phone system. Besides, both of the outdoor unit and indoor unit have good appearance and modern design. It is a good choice for your home security and intercom.

Features:

  • Fully waterpoof, support outdoor working.

  • Ring cancel function, do not disturb mode.

  • Brightness, chroma and volume adjustable

  • Hands-free intercommunication.

  • 9 inch TFT color screen with low power consumption, no radiation and high definition Resolution: 800*480.

  • Clear night-viewing, 24 hours monitoring, calling, speaking and unlocking etc.

  • Monitor unlock control;

  • Dual-way intercom;

  • Show outdoor image manually.

  • 10 melodies for ringing selection;

  • 9" TFT digital color  Screen;



FAQ - Frequently Asked Questions:

Q : Can I use CAT5 or CAT5E cables as extension cables?
A : Yes, you can.



C2V-1C2V-2C2V-3C2V-4

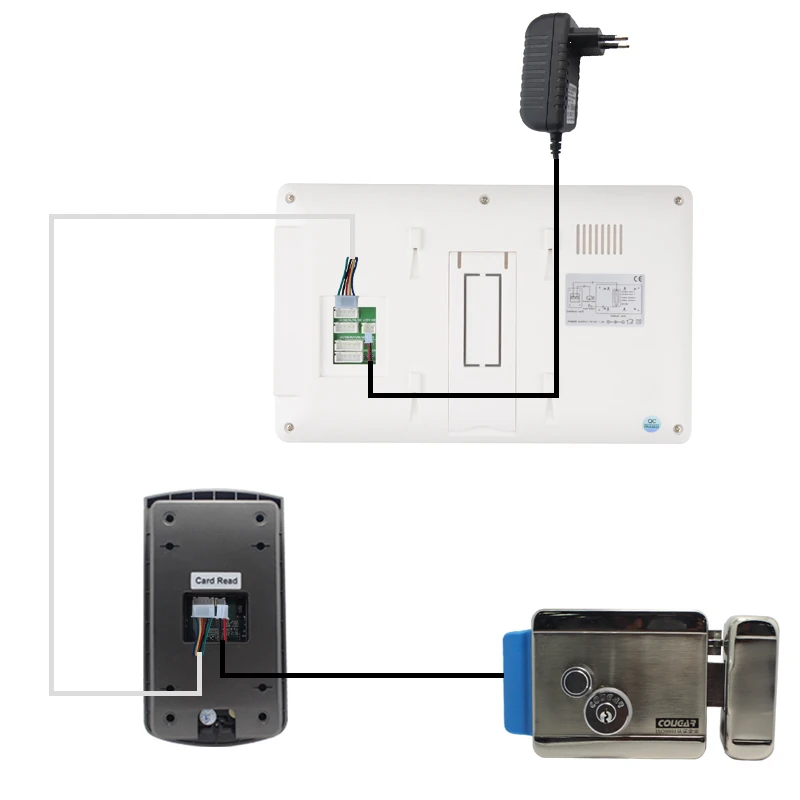

Note: Your door is electrically controlled lock can be directly connected to the outdoor unit to unlock the door,if you are installing mute lock or electromagnetic locks, please access the power connection of the outdoor unit. Thank you

If you need a lock, you can click on the picture below to buy

1-31-11-61-21-41-51-7

Note:
The cables are very easy to be found in your local market as they are international standard.
We suggest testing the door phone kit with our original cable before installation, and the distance between the units should not be too close(3 meters distance may be OK) while testing, or it will cause noise sound.
The total length of the connection cables can NOT exceed 100 meters.
If your cable is too long and NOT thick enough,Not pure copper, it will cause many problems, please check the wiring requirement.
-1

If you need to buy professional video doorbell wires, you can click on the picture below to buy

10-25P

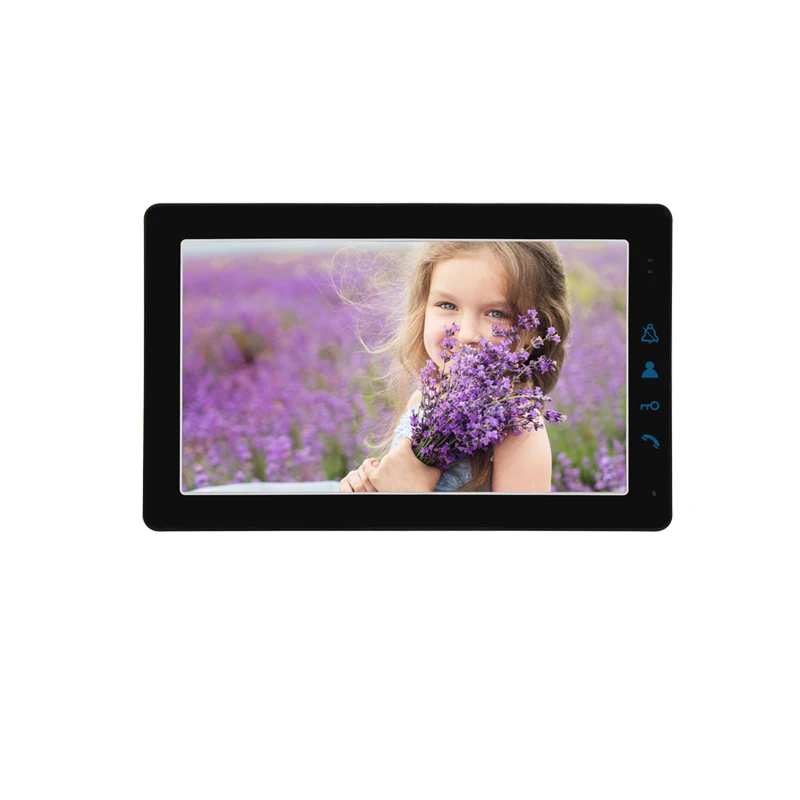

Indoor Unit Specification:

  • Screen size: 9”(16:9 display)

  • Resolution:  digital:800(RGB)×480Pixel

  • Visual angle: up 50 degree, down 70 degree, left or right 70 degree

  • Brightness: 200cd/centiare

  • Ringtone: 10 chorded polyphonic ringtone

  • Sensitivity: 56db

  • Signal system:  PAL/NTSC (optional)

  • Input voltage: AC 100V-240V ~ 50Hz/60Hz

  • Overall Power Consumption: ≤6W(400mA)

  • Stand-by Power Consumption: <1.1W

  • Power Adapter Specifications: DC 15V 1000-1500mA

  • Talk Time Delay:  120S±10%

  • Monitor Time Delay:  40S±10%

  • Effective distance: 200M(4×0.75mm⊃2;)

  • Operating Temperature :-20~+60 degree

  • Relative humidity: 10%~90%(KH)

  • installation: Wall mounted

  • Indoor unit installation method: wall-mounted type



Outdoor Unit Specification:

  • Infrared lamp lighting distance: approximate 4 meters

  • Gain control: auto

  • Resolution: 700 TVL

  • Lens: 2.3mm

  • Talk time delay: 120S±10%

  • Image transmission distance: approximate 200 meters

  • Visual angle:  92 degree

  • KW: <2W

  • Power: DC 15V (provided by the extension phone directly)

  • Camera : High definition and colorful CMOS/CCD(optional)

  • Outdoor infrared night vision function: 10 LUX infrared

  • Operating Temperature:-20~+60 degre

  • Outdoor unit installation method: wall-mounted type
