LINK-MI LM-TV09-4K2K video wall monitors 3X3 for video wall screen hdmi Mobile phone signal dp input 9 TV shows output Full hd splicing video wall 4K

Introduction
LINK-MI TV-4K2K Series LM-TV09-4K2K  is a high performance UHD Ultra HD 4K Image splicer, user-customizable2 To 12Image stitching. Its main function is to M × N splicing display unit displays a 3840×[email protected] of super high definition image. Products using advanced image processing technology, the input signal can support HDMI2.0, that is 3840×[email protected], even when playing fast animation ,will not appear,delay,dropped frames are like.
Support 1xHDMI2.0, 1xMobile signal port, 1xDP1.2 Enter, Maximum resolution support 3840×[email protected]; HDMI Signal outputs, each output is a fixed rate 1920×[email protected]
Other more detailed feature descriptions, please refer to the product specifications.

Main functions
1.  Input signal
Product support 1xHDMI ,1xMobile signal,1xDP Input, all input embedded audio input or binding, users can access all the signals on demand, or access part of the signal, interface functions and interface pictures are as follows:
Mobile signal : Support HDMI1.4 Signal input, maximum support 3840×[email protected] HDMI Signal input can be backwards compatible; through a Mobile signal Go HDMI Lines can also be compatible with Mobile signal Output image output device, such as Mobile signal Enabled mobile phones or Tablet;
HDMI : Support HDMI2.0 Signal input, enter the maximum resolution supported 3840×[email protected];
DP : Support maximum resolution support 3840×[email protected];
2.  Output signal
9 channel HDMI 1.3 output, output resolution of [email protected]
3.  Signal switching function
Support 1 channel HDMI 2.0, 1 channel mobile signal 1.4,1 channel DP signal input. Switching can be done by remote control, front panel buttons,or the automatic recognition function of the input signal.
When the controller is set to the automatic identification signals,any one port of the input interfaces have signal input,it can be display in the display units.
4.  Quad-screen processing

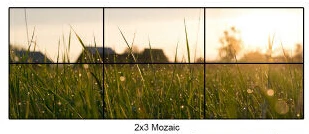

 Achieving the most basic 3x3 nine-screen splicing function, and you can also set 1x2,1x3,1x4,2x1,4x1,2x2, 2x3,3x2,2x4,4x2,3x3 etc. display modes, as shown in the following figure:

123

9

5.  Image rotate function
Compared with ordinary products,LM-TV09-4K2K has a set of signals 180 degree flip. When users are using common LCD splicing, on a row of LCD TV flip 180 degrees, thus substantially reducing LCD splicing gap, reducing image distortion caused by seam is too large, as shown in the following figure:
10
6. Audio functions
1. Input signals HDMI,DP,mobile signal channel support audio input function.
2. Output HDMI and audio input devices are connected, view audio and  synchronized playback can be realized.
3. Support 3.5mm headphone stereo left and right channel independent stereo output connections.

The features
1.  Pure hardware system
Based on Pure hardware system, no CPU, no memory, boot only need 3s to 5s, System stability, no crashes, no system crashes,no virus infection risk.Support 365*24 hours of uninterrupted work.
2.  Advanced DSP video processing technology
   Using the most powerful image processing chip DSP technology. DSP technical support DCDI edge smoothing,ACM Adaptive color management, support of CCS color crosstalk suppression, support sharpness enhancement, dynamic contrast enhancement, genuine six-axis colour control overlap, elimination of noise amplification and other world-leading image processing technologies and functions.
And with 3D comb filter decoding,3D noise reduction and motion-adaptive de-interlacing, color correction, color enhancement,GAMMA correction, and advanced features such as frame rate conversion. Output images without jagged lines or tail, delicate picture quality sharp, smooth and clear, bright colors.
3.  Powerful data operations
Data parallel processing technology, each output reached 1920*[email protected] high resolution display. High speed dynamic picture no delay, no tear,no dropped frames,no images chasing phenomenon.
4 ,  Support 3840*[email protected] UHD signal input
    LM-TV09-4K2K video wall controller support 1 channel DP,1channel HDMI  and mobile signal input , UHD video support interlaced and progressive input.It supports up to 3840*[email protected] of ultra high resolution signal input, and downward compatibility; all input signals through professional-level image processing chip, unified output line by line 60Hz HDMI signal,9 ports together to achieve the output resolution [email protected].
5.  Ultra low power consumption
The controller using low-power design, no fan, energy saving and environmental protection, no noise pollution, suitable for all kinds of noise control more stringent meetings or other places.

Installation machine
1 .Open the package
Check host attachments. Include the host, the power cord, remote control, warranty card and instructions.
2. Installation machine
2.1 . TV sets:
LCD TV or other display device setting input signal to HDMI State. Display unit has multiple HDMI input ports, make sure that connection splicer HDMI lines corresponding to the port;
2.2 . Stitching device connected to the TV:
When in place of picture mosaic, by HDMI Line equipment Output With LCD TV HDMI Input connection, please note that TV must correspond with the splicing processor is connected to the port. Output pictures for the following equipment:

3x3 LM-TV09-4K2K (7)

Each of the LCD unit with the splicer is connected to the output port, location boxes indicate LCD, digital output port, each mosaic mode in the following illustration each LCD is connected with the corresponding port:
6
2.3 Input signal connections
Product support 1xHDMI ,1xmobile signal, 1xDP Input, all input embedded audio input or binding, users can access all the signals on demand, or access part of the signal, interface functions and interface pictures are as follows:
Mobile signal : Support HDMI1.4 Signal input, maximum support 3840×[email protected] HDMI Signal input can be backwards compatible; through a mobile signal Go HDMI Lines can also be compatible with mobile signal Output image output device, such as mobile signal Enabled mobile phones or Tablet;
HDMI : Support HDMI2.0 Signal input, enter the maximum resolution supported 3840×[email protected];
DP: Support maximum resolution support 3840×[email protected]

3x3 LM-TV09-4K2K (6)

2.4、Audio connection
A-OUT Splicer audio output, can purchase an ordinary computer audio and A-OUT Connections;
2.5、Power on boot
After the above cable connection is good, through the power adapter to the device input12VDC power supply, the power led shows red, equipment in good working condition;
Remote Control Settings
7
8
Panel Description

3x3 LM-TV09-4K2K (1)

System topology

3x3 LM-TV09-4K2K (2)




Packing Contents
 Main Unit. 1pcs Video Wall Controller 3x3
 1pcs Power Adapter Cable
 2pcs  Mounting Ear
 1pcs User Manual
2

3x3 LM-TV09-4K2K (4)
LM-TN703 4K2K
